New2025 Bad Boy 4035CH Cab Hydrostatic Tractor

** 4035 TRACTOR SPECS**

4035 ENGINE

• ENGINE: 3 CYLINDER, WATER-COOLED, DIESEL

• ENGINE HP @ RPM: 35

• DISPLACEMENT (IN.): 104.5

• NUMBER OF CYLINDERS: 3

• FUEL TANK (GAL.): 7.1




  4035 DRIVETRAIN

• TRANSMISSION: HST

• NUMBER OF SPEEDS: 3 RANGE

• CLUTCH: NO

• BRAKES: WET, MULTI-DISC




  4035 HYDRAULICS

• TYPE: HYDRO-STATIC POWER STEERING

• TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT): 12.6 (4.4+8.2)

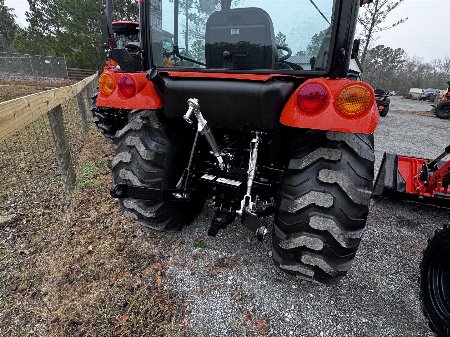

• 3-POINT HITCH: CAT 1

• REAR REMOTE VALVE: OPTIONAL (UP TO 2)

• 3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT (LBS.): 2,425




  4035 DIMENSIONS

• OVERALL LENGTH: 134.88"

• OVERALL WIDTH: 4035H - 56.7" | 4035CH - 55.6"

• OVERALL HEIGHT: 104.06"

• WHEELBASE: 65.7"

• MINIMUM GROUND CLEARANCE: 13.1"

• WEIGHT: 4035H - 3,164 LBS. | 4035CH - 3,551 LBS.




  4035 PTO

• TYPE: INDEPENDENT

• REAR (MID) PTO SPEED: 540

• PTO HP: 29.5




  4035 ELECTRICAL

• BATTERY: 12 V, 540 CCA

• ALTERNATOR: 12 V, 50 A




  4035 WHEELS & TIRES

• IND (FRONT): 28X8.50-15

• IND (REAR): 43X16.00-20




  4035 LOADER - MODEL BBL400

• STANDARD BUCKET SIZE (IN.): 62

• MAXIMUM LIFT HEIGHT (IN.): 104

• DIG DEPTH (IN.): 1.8

• LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.): 2,200

• BREAKOUT FORCE (LBS.): 3,660

• SHIPPING WEIGHT (LBS.): 1,007




  4035 BACKHOE - MODEL BBH400

• STANDARD BUCKET SIZE (IN.): 16

• TYPE: SUBFRAME-MOUNTED, QUICK ATTACH

• MAXIMUM DIG DEPTH (IN.): 92.2

• DIG FORCE BUCKET (LBS.): 4,380

• SHIPPING WEIGHT (LBS.): 1,270
